Plate

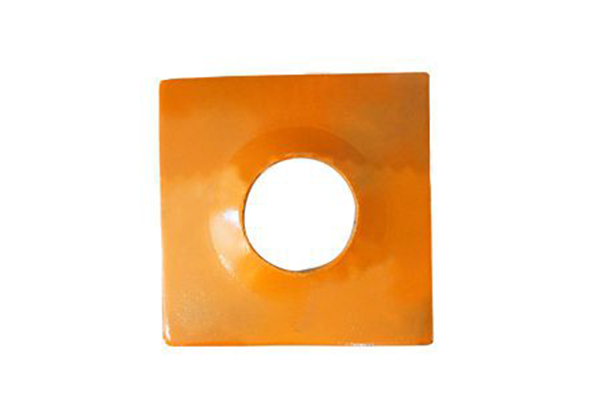

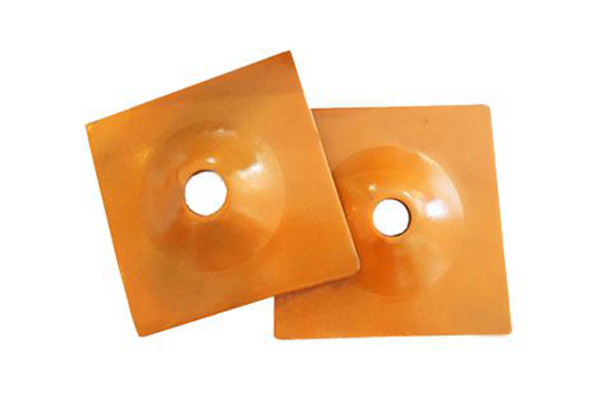

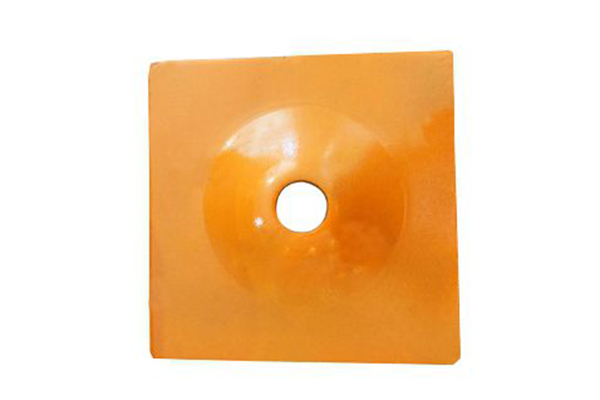

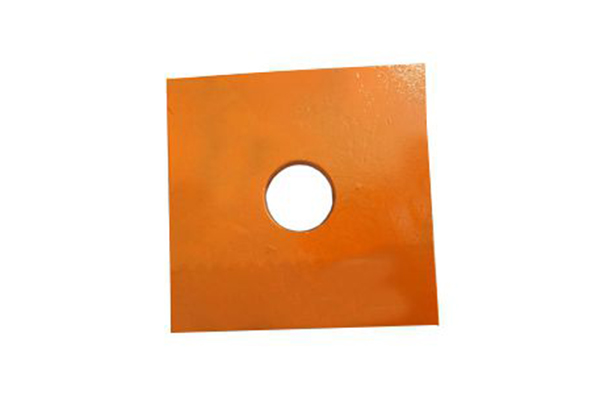

The plate transmits load force from the self-drilling anchor system to the work face.
Features
Plate specifications are customizable.
ApplicationsPre-supporting, micropiling for foundation underpinning, slope anchorage, etc.
Parameters
Size | Domed Plate | Solid Plate | ||||
A x A x B (mm) | D(mm) | Weight (kg) | A x A x B (mm) | D(mm) | Weight (kg) | |
R25 | 150x150x 8 | 30 | 1.4 | x | x | x |
R32 | 200x200x10 | 35 | 3.2 | x | x | x |
R32 | 200x200x12 | 35 | 3.8 | x | x | x |
R38 | 200x200x12 | 41 | 3.8 | x | x | x |
R51 | x | x | x | 200x200x30 | 56 | 9 |
R51 | x | x | x | 250x250x40 | 56 | 18.5 |
T76 | x | x | x | 250x250x40 | 80 | 18 |
T76 | x | x | x | 250x250x60 | 80 | 27 |
T30 | 200x200x 8 | 36 | 2.5 | |||
T40 | 200x200x12 | 56 | 3.5 | |||
T52 | x | x | x | 220x220x35 | 65 | 12 |
T73 | x | x | x | 250x250x40 | 80 | 18 |
T103 | x | x | x | 240x240x50 | 110 | 19 |
Note: | Other dimensions are available upon request. |
