Top Hammer Drill Rods
Top hammer drill rod performs power transmission works in the drilling process, via which power from rock drill piston is transmitted to drill bits, and finally delivered into rocks. One side of the drill rod is connected to coupling or directly to the shank adapter, while the other side is connected with drill bit. Top hammer drill rods are suitable for drilling works for blasting duties in tunneling, construction, mining, quarrying, etc.
- Carburizing process is applied to promote surface hardness, thus grant better wearing quality and lifespan for the drill rods;
- 23CrNi3Mo, which is in same league as Sandvik Sandbar 64, is applied as drill rod material.
- Cost-effective, good performance with reasonable price.
- Complete types of drill rod for various drilling scenarios.
Drilling duties in tunneling, construction, mining, quarrying, etc.

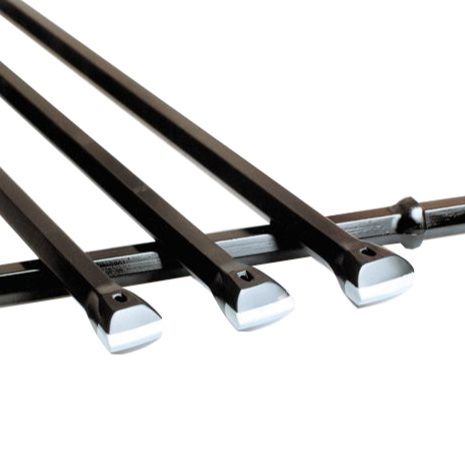

Integral Drill Rod
Connected to rock drill, the integral drill rod can be directly deployed for drilling.
Parameters- Rock drill connection: H22*108mm
- Diameter: 26mm-41mm
- Length: 800mm-8000mm

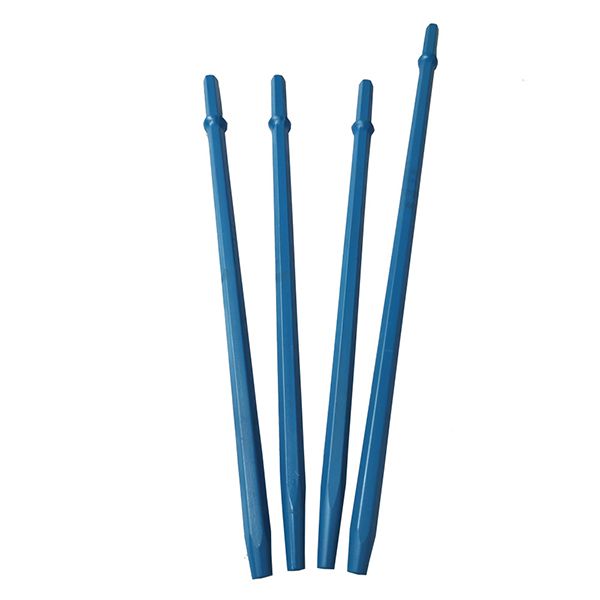

Taper Drill Rod
With one side connected to rock drill and the other side connected with taper drill bit, the taper drill rod transmits power from rock drill to bit, drilling work is thus performed.
Parameters- Rock drill connection: H22*108mm
- Conical degree: 4°46’ , 6°, 7°, 11°, 12°
- Length: 400mm-8000mm

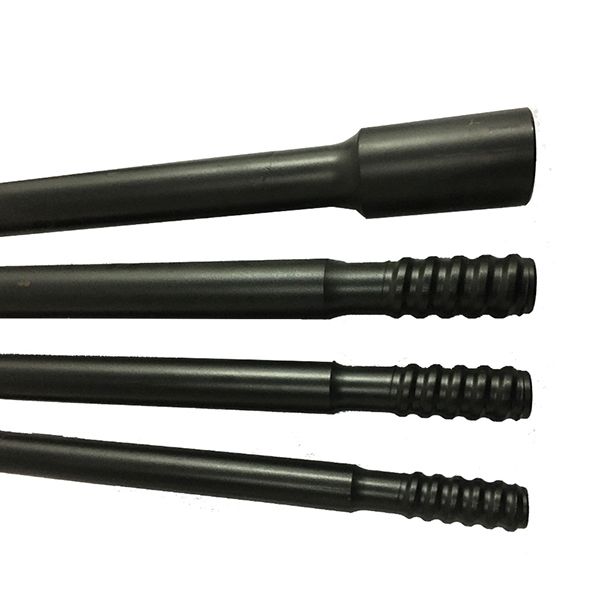

MF Drill Rod
Extension Drill Rod

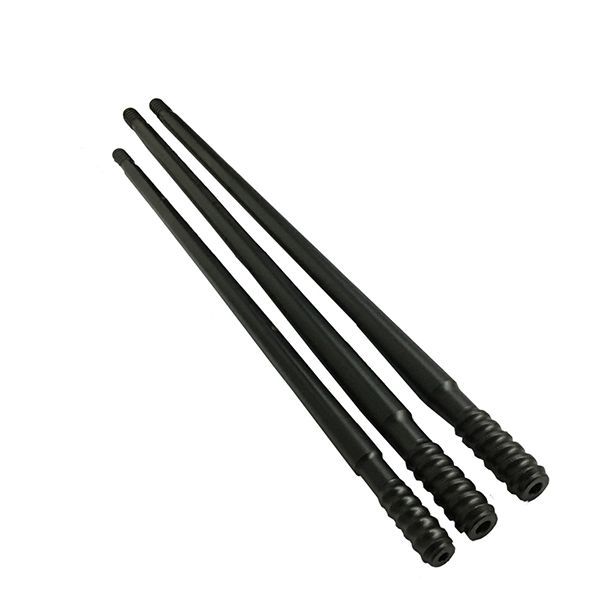

Extension drill rod transmits power from rock drill piston to rock, one side of the rod is connected to coupling or shank adapter, while the other side is connected with threaded drill rod.
Parameters- Thread type: R25, R28, R32, R38, T38, T45, T51
- Diameter: Hex.22, Hex.25, Hex.28, Hex.32, Hex.35.
Round 32, Round 39, Round 46, Round 52. - Length: 600mm-6095mm
- Slot for wrench: with or without
