DTH Drill Rods

Home
Products
DTH Drilling Tools
DTH Drill Rods

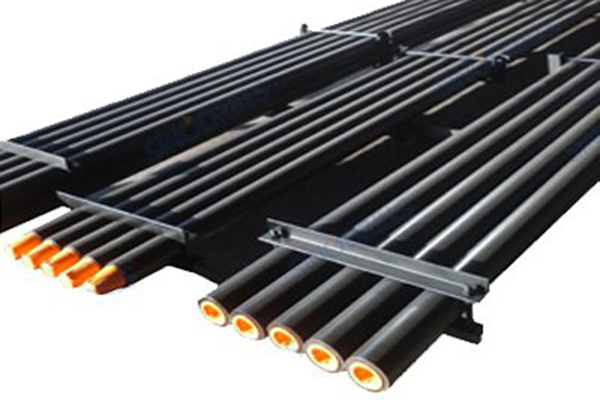

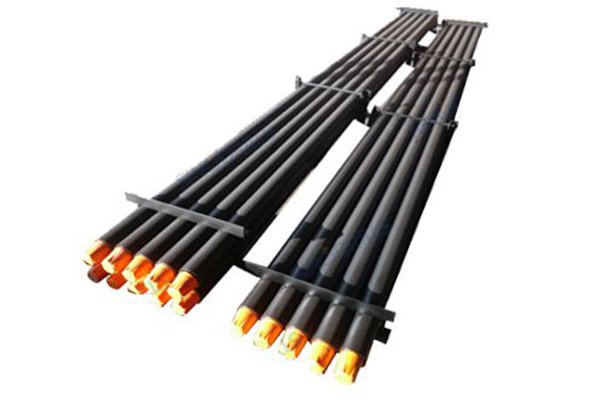

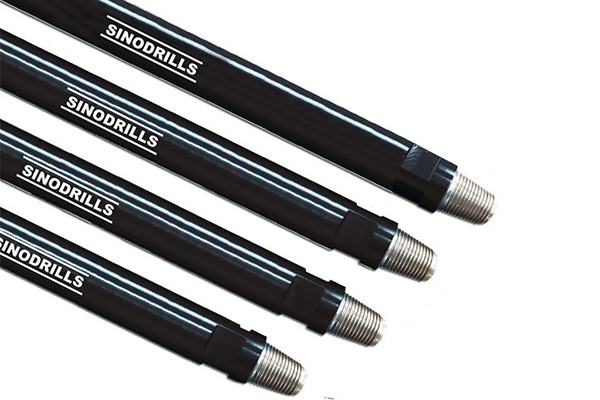

DTH drill rods transmit compressed air, so as to power the hammers to perform drilling works.

Features

Complete sizes for option, suitable for different types of DTH drilling system;
The rods are made of cold-drawn steel with high manufacturing precision;

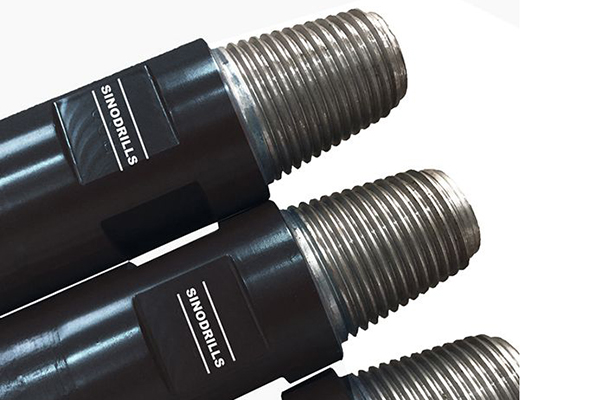

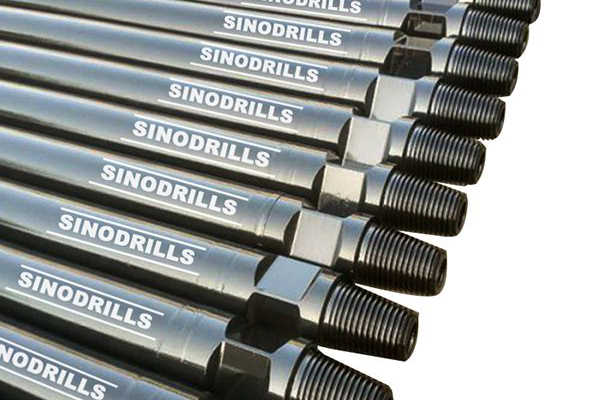

Thread joint sturdily linked to the rod via friction welding;
Nitriding process grants the thread joint good hardness, good wearing quality and thus long lifespan.

Applications

Mining, quarrying, water well drilling, geothermal well drilling, foundation piling, etc.

Inquiry

Parameters

GES Drill Pipe

Standard DTH Drill Pipes

mm	mm	mm	mm	Joints connection

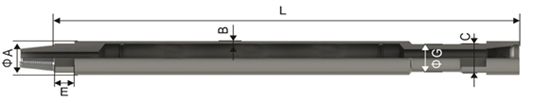

OD A	Wall thickness B	Effecitve length L	Wrench flat C/G	Pin-Box
76	5.5	1000/1500/2000 3000	57/65	2 3/8” REG
76	6.5	1000/1500/3000 4000/5000/6000	65	2 3/8” REG
89	5.5	1000/1500/2000 3000	65	2 3/8” REG, 2 3/8” IF
89	6.5	1000/1500/2000 3000/4500/6000	65	2 3/8” REG, 2 3/8” IF
102	6.5	1500/2000/3000 4000/5000/6000	75/83	2 7/8” REG
102	8.5	1500/2000/3000 4000/5000/6000	75/83	2 7/8” REG
114	6.5	1000/1500/2000 3000/4500/6000	89/95	3 1/2” REG, 2 7/8” IF, 3 1/2” IF
114	8.5	1500/2000/3000 4000/5000/6000	89/95	3 1/2” REG, 2 7/8” IF, 3 1/2” IF
127	10	3000/4000/5000 6000/8100/9140	89	3 1/2” REG, 4 1/2” REG,
127	19	3000/4000/5000 6000/8100/9140	89	3 1/2” REG, 4 1/2” REG,
140	11	3000/4000/5000 6000/8100/9140 10670	114	4 1/2” REG,
140	19	3000/4000/5000 6000/8100/9140 10670	114	4 1/2” REG,

GSE Drill Pipe

Schramm Carousel style

mm	mm	mm	mm	mm	mm	Connection
OD A	Wall B	Length L	Across Flat C	Flat Length E	Recess Dia.G	Thread
89	9.35	6096	82	70	70	2 3/8”IF
89	8.56	6096	98	57	89	3 1/2” REG
89	8.56	7620	98	57	89	2 7/8”IF
89	8.56	7620	98	57	89	3 1/2” REG
89	8.56	7620	98	57	89	2 7/8”IF

GSE Drill Pipe

Atlas copco-Ingersill Rand T4 IRT4

(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	Connection
Diameter A	Wall B	Length L	Wrench Flat E	Recess Dia. G	Across Hex M	Thread
102	8.38	6350	89	89	95	2 7/8” REG
102	8.38	7620	89	89	95	2 7/8” REG
114	8.56	6350	89	102	86	3 1/2” REG
114	8.56	6350	89	102	86	2 7/8” IF
114	8.56	7620	89	102	86	3 1/2” REG
114	8.56	7620	89	102	86	2 7/8” IF
114	12.70	7620	89	102	86	3 1/2” REG
114	19.05	6350	89	102	86	3 1/2” REG
114	19.05	7620	89	102	86	3 1/2” REG
127	9.19	6350	89	102	89	3 1/2” REG
127	9.19	7620	89	102	89	3 1/2” REG
127	12.70	6350	89	102	89	3 1/2” REG
127	19.05	7620	89	102	89	3 1/2” REG
127	12.70	6350	89	102	89	3 1/2” REG
127	12.70	7620	89	102	89	3 1/2” REG
140	12.70	6350	89	127	86	3 1/2”Beco
140	12.70	7620	89	127	86	3 1/2”Beco
140	12.70	6350	89	127	86	4FH
140	12.70	7620	89	127	86	4FH
140	19.05	6350	89	127	86	3 1/2”Beco
140	19.05	7620	89	127	86	3 1/2”Beco
140	19.05	6350	89	127	86	4FH
140	19.05	7620	89	127	86	4FH

GSE Drill Pipe

Schramm T64 Style

mm	mm	mm	mm	mm	mm	Thread
OD A	Wall B	Length L	Across Flat C	Flat Length E	Dist From Shoulder G	Connection
114	8.5	6000	98	51	95	3 1/2” REG
114	8.5	6000	45	51	57	3 1/2” REG

GSE Drill Pipe

Drill Pipe for CP650

mm	mm	mm	mm	mm	mm	Connection
OD A	Wall B	Length L	Across Flat C	Flat Length E	Dist From Shoulder G	Thread
114	8.56	6096	95	38	152	3 1/2” REG
114	8.56	6096	95	38	152	3 1/2” REG

GSE Drill Pipe

Drill Pipes for CM (CM760/780)

mm	mm	mm	mm	mm	mm	Connection
OD A	Wall B	Length L	Across Flat C	Flat Length D	Across Flat E	thread
102	8.5	4400	86	76	76	2 1/2”Z, 3 1/2” REG
102	8.5	5000	86	76	76	2 1/2”Z, 3 1/2” REG

GSE Drill Pipe

Atlas Copco Roc F6/L6/L8

(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	Connection
OD A	Wall B	Length L	Across Flat C	Flat Length E	Across Flat G	Thread
76	6.3	4000	——	——	——	2 3/8” REG
76	6.3	5000	——	——	——	2 3/8” REG
89	6.3	4000	——	——	——	2 3/8” REG
89	6.3	5000	——	——	——	2 3/8” REG
89	6.3	6000	——	——	——	2 3/8” REG
89	8.8	6000	——	——	——	2 3/8” REG
102	6.3	4000	——	——	——	2 7/8” REG
102	6.3	5000	——	——	——	2 7/8” REG
102	6.3	6000	——	——	——	2 7/8” REG
114	6.3	6000	——	——	——	3 1/2” REG
114	8.8	6000	——	——	——	3 1/2” REG
114	8.8	6000	——	——	——	4 1/2” REG

GSE Drill Pipe

Drill Pipes for Sandvik/Drilltech D25/D40K

(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	Connection
OD A	Wall B	Length L	Across Flat C	Flat Length E	Across Flat G	thread
89	8.00	6096	70	317.5	83	2 3/8”IF
114	8.56	6096	76	317.5	102	3 1/2”REG
114	8.56	6096	76	317.5	102	2 7/8”IF
114	8.56	7620	76	317.5	102	3 1/2”REG
114	8.56	7620	76	317.5	102	2 7/8”IF
114	8.56	9144	76	317.5	102	3 1/2”REG
114	12.7	7620	76	317.5	102	3 1/2”REG
114	12.7	9144	76	317.5	102	3 1/2”REG
114	19.05	7620	76	317.5	102	3 1/2”REG
127	12.7	7620	76	317.5	102	3 1/2”REG
127	12.7	9144	76	317.5	102	3 1/2”REG
127	19.05	9144	76	317.5	102	3 1/2”REG
127	19.05	7625	76	317.5	117	3 1/2”Beco
140	19.05	7625	76	317.5	117	3 1/2”Beco
140	19.05	9144	76	317.5	117	3 1/2”Beco
