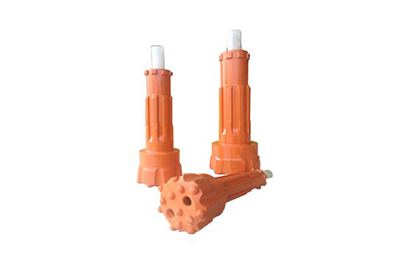

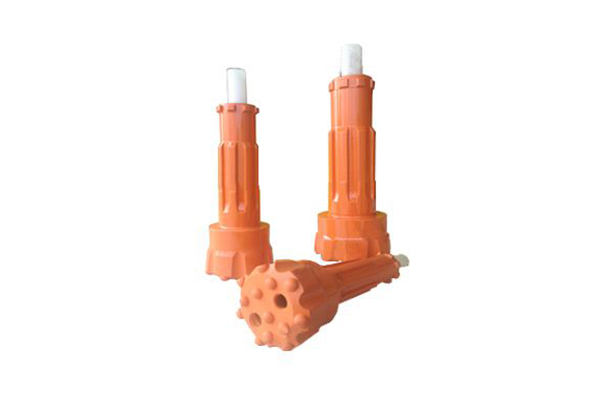

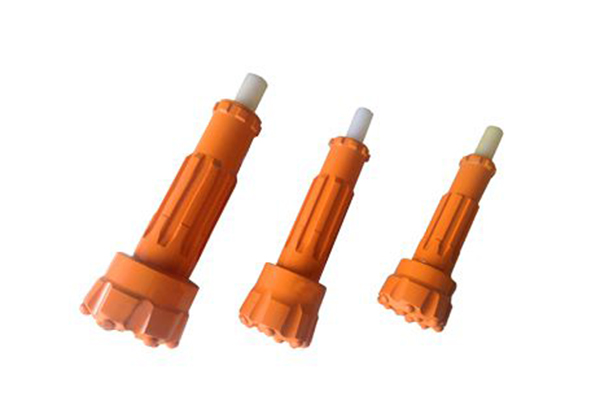

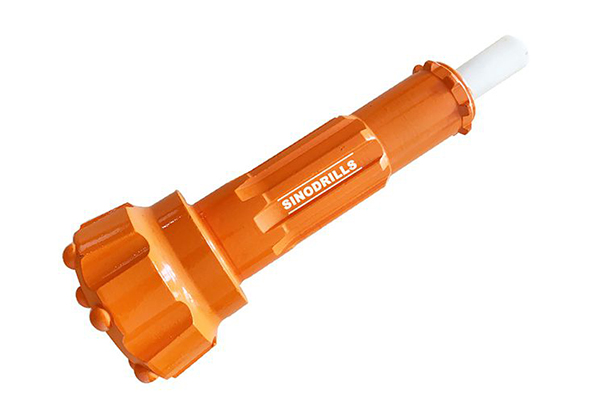

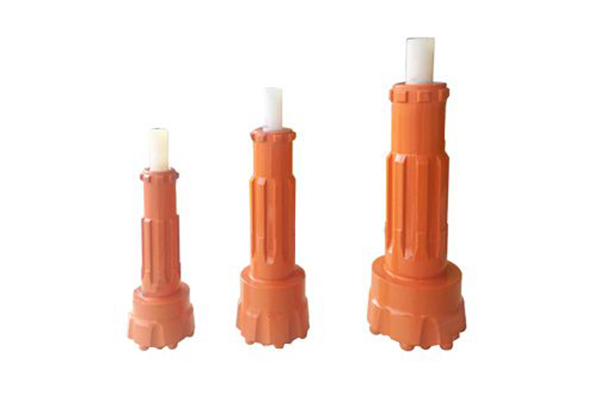

DTH Drill Bits
Driven by DTH hammer, the DTH drill bits crush and drill rocks by impacting.
Features- Premium YK05 alloy buttons;
- Premium alloy steel for skirts;
- Skirts are nitriding-processed, featuring better wearing quality;
- Complete sizes and specifications, compatible with most mainstream-branded DTH hammers.
Mining, quarrying, water well drilling, geothermal well drilling, foundation piling, etc.

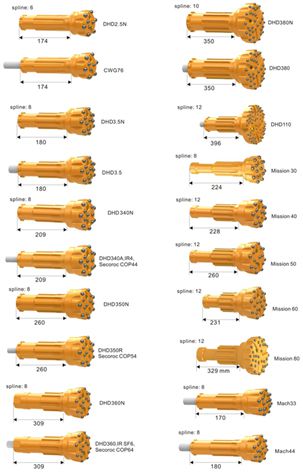

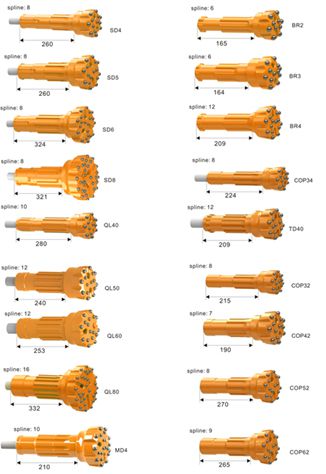

DTH Bits Shank Identification
Flat front: Spherical buttons
Applications: For drilling in hard and abrasive rock
Flat front: Spherical gauge buttons, Ballistic front buttons.
Applications: For drilling in medium hard to hard and moderately abrasive rock.
Convex front: Ballistic
Applications: For drilling at high penetration rates in non abrasive rock.
Concave front: Ballistic
Applications: For drilling in medium hard, maximum hole deviation control.
Hemispherical button Universal buttons for all rock formation, best suited to hardest and very abrasive rocks formation
Parabolic button (semi-ballistic) Excellent penetration rate, but only suited to medium hard and not-very-abrasive rock formation.
Ballistic buttons Similar to parabolic buttons, used for soft to medium hard and not so abrasive rock formation, excellent in penetration rate
| 2 inches DTH hammer button bits | ||||||
| Shank style | Diameter in mm | Flat face | Convex face | Concave face | Approx. weight | Part Number |
| BR 2 | 70 | √ | √ | 2.5kgs | BR2-70 | |
| 76 | √ | √ | 2.6kgs | BR2-76 | ||
| 80 | √ | √ | 2.7 kgs | BR2-80 | ||
| 90 | √ | √ | 3.5 kgs | BR2-90 | ||
| 3 inches DTH hammer button bits | ||||||
| Shank style | Diameter in mm | Flat face | Convex face | Concave face | Approx. weight | Part number |
| 85 | √ | √ | 3.0 kgs | BR3-85 | ||
| 90 | √ | √ | 3.4 kgs | BR3-90 | ||
| BR 3 | 95 | √ | √ | 3.8 kgs | BR3-95 | |
| 100 | √ | √ | √ | 4.5 kgs | BR3-100 | |
| 105 | √ | √ | √ | 5.2 kgs | BR3-105 | |
| 85 | √ | √ | 3.6kgs | Mach33-85 | ||
| 90 | √ | √ | 3.7 kgs | Mach33-90 | ||
| Mach 303 | 95 | √ | √ | 4.0 kgs | Mach33-95 | |
| 100 | √ | √ | √ | 4.5 kgs | Mach33-100 | |
| 105 | √ | √ | √ | 5.5 kgs | Mach33-105 | |
| 85 | √ | √ | 5.0 kgs | DHD3.5-85 | ||
| 90 | √ | √ | 5.8 kgs | DHD3.5-90 | ||
| DHD3.5 | 95 | √ | √ | 5.9 kgs | DHD3.5-95 | |
| 100 | √ | √ | √ | 6.1 kgs | DHD3.5-100 | |
| 105 | √ | √ | √ | 6.3 kgs | DHD3.5-105 | |
| 85 | √ | √ | 4.5 kgs | COP32-85 | ||
| 90 | √ | √ | 4.6 kgs | COP32-90 | ||
| COP 32 | 95 | √ | √ | 4.7 kgs | COP32-95 | |
| 100 | √ | √ | √ | 4.8 kgs | COP32-100 | |
| 105 | √ | 4.9 kgs | COP32-105 | |||
| 85 | √ | √ | 5.0 kgs | COP34-85 | ||
| 90 | √ | √ | 5.7kgs | COP34-90 | ||
| COP 34 | 95 | √ | √ | 5.8 kgs | COP34-95 | |
| 100 | √ | √ | √ | 6.0 kgs | COP34-100 | |
| 105 | √ | √ | √ | 6.2 kgs | COP34-105 | |
| 85 | √ | √ | 4.6 kgs | Mission30-85 | ||
| 90 | √ | √ | 4.7 kgs | Mission30-90 | ||
| Mission 30 | 95 | √ | √ | 4.9 kgs | Mission30-95 | |
| 100 | √ | √ | √ | 5.3 kgs | Mission30-100 | |
| 105 | √ | √ | √ | 5.4 kgs | Mission30-105 | |
| 5 inches DTH hammer button bits | ||||||
| Shank style | Diameter in mm | Flat face | Convex face | Concave face | Approx. weight | Part number |
| 135 | √ | √ | √ | 16.2 kgs | DHD350-135 | |
| 140 | √ | √ | √ | 16.5 kgs | DHD350-140 | |
| DHD350R | 146 | √ | √ | √ | 17.0 kgs | DHD350-146 |
| 152 | √ | √ | √ | 17.8 kgs | DHD350-152 | |
| 165 | √ | √ | √ | 18.5 kgs | DHD350-165 | |
| 135 | √ | √ | √ | 16.0 kgs | MACH50-135 | |
| 140 | √ | √ | √ | 16.5 kgs | MACH50-140 | |
| MACH50 | 146 | √ | √ | √ | 17.8 kgs | MACH50-146 |
| 152 | √ | √ | √ | 18.0 kgs | MACH50-152 | |
| 165 | √ | √ | √ | 18.5 kgs | MACH50-165 | |
| 135 | √ | √ | √ | 16.2 kgs | QL50-135 | |
| 140 | √ | √ | √ | 16.6 kgs | QL50-140 | |
| QL 50 | 146 | √ | √ | √ | 17.1 kgs | QL50-146 |
| 152 | √ | √ | √ | 17.8 kgs | QL50-152 | |
| 165 | √ | √ | √ | 18.0 kgs | QL50-165 | |
| 135 | √ | √ | √ | 14.0 kgs | Mission50-135 | |
| 140 | √ | √ | √ | 15.0 kgs | Mission50-140 | |
| Mission 50 | 146 | √ | √ | √ | 16.0 kgs | Mission50-146 |
| 152 | √ | √ | √ | 17.1 kgs | Mission50-152 | |
| 165 | √ | √ | √ | 18.0 kgs | Mission50-165 | |
| 135 | √ | √ | √ | 14.5 kgs | SD5-135 | |
| 140 | √ | √ | √ | 15.5 kgs | SD5-140 | |
| SD 5 | 146 | √ | √ | √ | 16.5 kgs | SD5-146 |
| 152 | √ | √ | √ | 18.0 kgs | SD5-152 | |
| 165 | √ | √ | √ | 19.0 kgs | SD5-165 | |
| 6 inches DTH hammer button bits | ||||||
| Shank style | Diameter in mm | Flat face | Convex face | Concave face | Approx. weight | Part number |
| DHD360 | 152 | √ | √ | √ | 23.3kgs | DHD360-152 |
| 165 | √ | √ | √ | 25.2 kgs | DHD360-165 | |
| 171 | √ | √ | √ | 25.8 kgs | DHD360-171 | |
| 190 | √ | √ | √ | 28.5 kgs | DHD360-190 | |
| 203 | √ | √ | √ | 29.5 kgs | DHD360-203 | |
| 152 | √ | √ | √ | 22.3 kgs | QL60-152 | |
| 165 | √ | √ | √ | 24.4kgs | QL60-165 | |
| QL 60 | 171 | √ | √ | √ | 24.8 kgs | QL60-171 |
| 190 | √ | √ | √ | 29.0 kgs | QL60-190 | |
| 203 | √ | √ | √ | 33.0 kgs | QL60-203 | |
| 152 | √ | √ | √ | 21.8 kgs | Mission60-152 | |
| 165 | √ | √ | √ | 23.5 kgs | Mission60-165 | |
| Mission 60 | 171 | √ | √ | √ | 25.0 kgs | Mission60-171 |
| 190 | √ | √ | √ | 27.0 kgs | Mission60-190 | |
| 203 | √ | √ | √ | 29.1 kgs | Mission60-203 | |
| 152 | √ | √ | √ | 27.0 kgs | SD6-152 | |
| 165 | √ | √ | √ | 28.0 kgs | SD6-165 | |
| SD 6 | 171 | √ | √ | √ | 31.0 kgs | SD6-171 |
| 190 | √ | √ | √ | 33.0 kgs | SD6-190 | |
| 203 | √ | √ | √ | 35.0 kgs | SD6-203 | |
| 8 inches DTH hammer button bits | ||||||
| Shank style | Diameter in mm | Flat face | Convex face | Concave face | Approx. weight | Part number |
| 203 | √ | √ | 48.1 kgs | DHD380-203 | ||
| 216 | √ | √ | 52.0 kgs | DHD380-216 | ||
| DHD380 | 241 | √ | √ | 58.7kgs | DHD380-241 | |
| 254 | √ | √ | 60.4 kgs | DHD380-254 | ||
| 292 | √ | √ | 80.1 kgs | DHD380-292 | ||
| 305 | √ | √ | 83.5kgs | DHD380-305 | ||
| 203 | √ | √ | 48.5 kgs | QL80-203 | ||
| 216 | √ | √ | 50.1 kgs | QL80-216 | ||
| QL 80 | 241 | √ | √ | 60.1 kgs | QL80-241 | |
| 254 | √ | √ | 62.5 kgs | QL80-254 | ||
| 292 | √ | √ | 85.0 kgs | QL80-292 | ||
| 305 | √ | √ | 83.9 kgs | QL80-305 | ||
| 203 | √ | √ | 41.0 kgs | Mission80-203 | ||
| 216 | √ | √ | 42.0 kgs | Mission80-216 | ||
| Mission 80 | 241 | √ | √ | 56.0 kgs | Mission80-241 | |
| 254 | √ | √ | 57.0 kgs | Mission80-254 | ||
| 292 | √ | √ | 71.5 kgs | Mission80-292 | ||
| 305 | √ | √ | 77.0 kgs | Mission80-305 | ||
| 203 | √ | √ | 42.0 kgs | SD8-203 | ||
| 216 | √ | √ | 54.0 kgs | SD8-216 | ||
| SD 8 | 241 | √ | √ | 63.0 kgs | SD8-241 | |
| 254 | √ | √ | 67.0 kgs | SD8-254 | ||
| 292 | √ | √ | 85.0 kgs | SD8-292 | ||
| 305 | √ | √ | 94.0 kgs | SD8-305 | ||
- 1. Diameters above are only our standard configurations, other diameters are also available upon request.
- 2. The unit weight for each size is for reference only.
- 3. Face design, buttons shape, buttons configuration and flushing holes number must be confirmed when confirming the order.
- 4. Please be cautious when ordering bigger-diameter button bits since they might be oversized.
