Hollow Anchor Bar

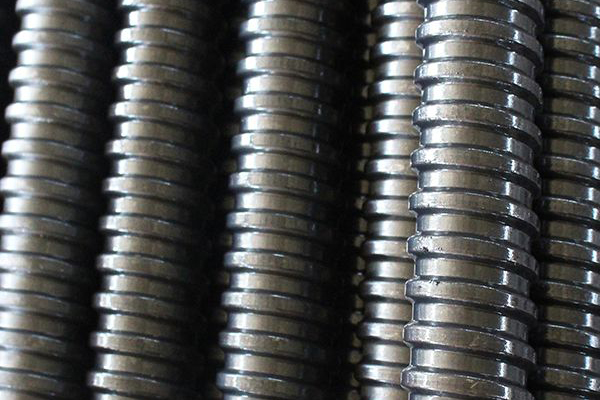

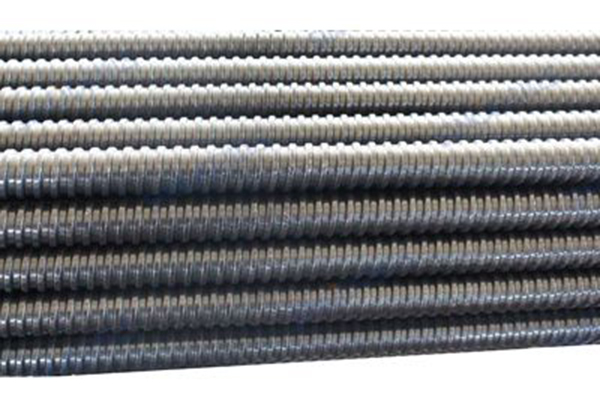

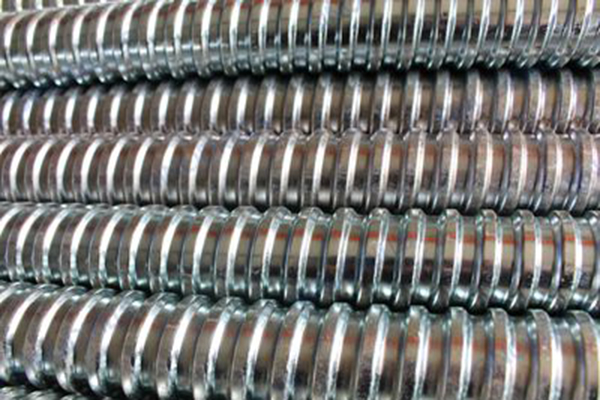

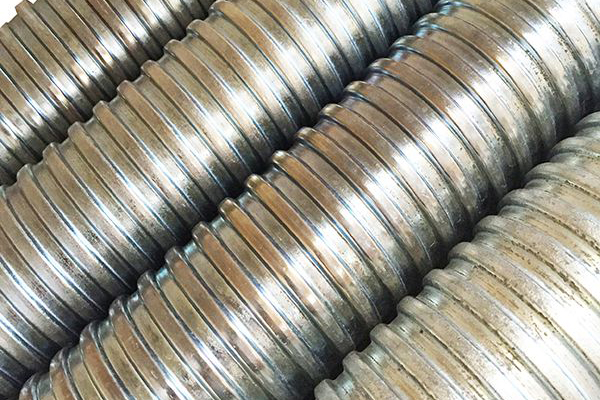

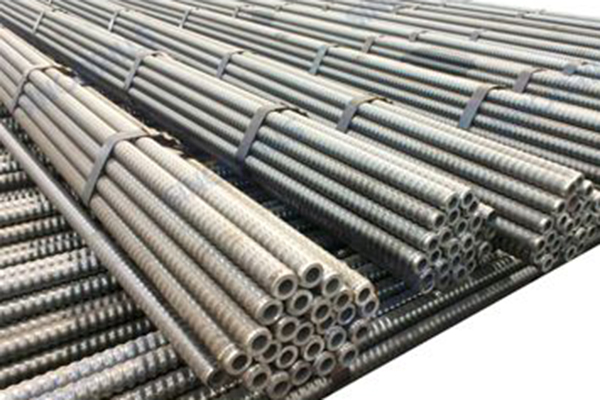

Hollow anchor bar is the body of a self-drilling anchor, as a hollow steel tube with an outer round thread, hollow anchor has the sacrificial anchor bit connected at one side, plate and nut connected at the other; two hollow anchor bars could be connected together via a coupling, for duties that requiring longer anchors.
Features
- Stable quality;
- Thread is compatible with ISO and other international standards;
- Good mechanical performance.
Pre-supporting, micropiling for foundation underpinning, slope anchorage, etc.
Parameters
| Size | O.D(mm) | I.D(mm) | Ultimate Load(KN) | Yield Load(KN) | Weight(kg/meter) |
| R25N-14 | 25 | 14 | 200 | 150 | 2.3 |
| R32L-22 | 32 | 22 | 210 | 160 | 2.8 |
| R32N-21 | 32 | 21 | 280 | 230 | 2.9 |
| R32N-18.5 | 32 | 18.5 | 280 | 230 | 3.4 |
| R32S-17.5 | 32 | 17.5 | 360 | 280 | 3.5 |
| R32S-15 | 32 | 15 | 360 | 280 | 4.1 |
| R32SS-14 | 32 | 14 | 405 | 350 | 4.3 |
| R38N-21 | 38 | 21 | 500 | 400 | 4.8 |
| R38N-19 | 38 | 19 | 500 | 400 | 5.5 |
| R38S-18 | 38 | 18 | 560 | 460 | 6 |
| R51L-38 | 51 | 38 | 550 | 450 | 6 |
| R51L-36 | 51 | 36 | 550 | 450 | 7.6 |
| R51N-36 | 51 | 36 | 800 | 630 | 7.6 |
| R51N-33 | 51 | 33 | 800 | 630 | 8.4 |
| R51S-30 | 51 | 30 | 930 | 730 | 9.4 |
| T76N-49 | 76 | 49 | 1600 | 1200 | 16.5 |
| T76S-45 | 76 | 45 | 1900 | 1500 | 19 |
| T30-11 | 30 | 11 | 320 | 260 | 3.3 |
| T30-14 | 30 | 14 | 275 | 220 | 2.9 |
| T30-16 | 30 | 16 | 245 | 190 | 2.7 |
| T40-16 | 40 | 16 | 660 | 525 | 7.1 |
| T40-20 | 40 | 20 | 540 | 425 | 5.6 |
| T52-26 | 52 | 26 | 930 | 730 | 10 |
| T73-56 | 73 | 56 | 1035 | 830 | 10.8 |
| T73-53 | 73 | 53 | 1160 | 970 | 14 |
| T73-45 | 73 | 45 | 1600 | 1270 | 17.5 |
| T103-78 | 103 | 78 | 2270 | 1800 | 25 |
| T103-51 | 103 | 51 | 3660 | 2670 | 44 |
| Thread direction | Left hand / Right hand | ||||
| Thread standard | ISO 10208 / ISO1720 / Other international standards | ||||
